FD 402
FD 402

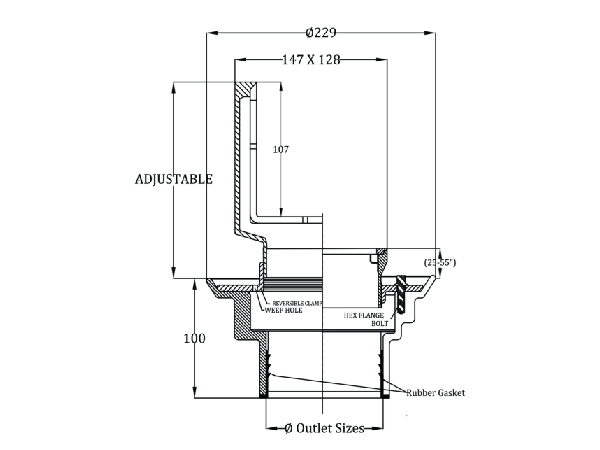

Normal Dimensions

Product Dimention

Model No Outlet Size Strainer Size Water Way Area
FD-402L2 50 mm 147X128mm 9500 mm²
FD-402L3 75 mm 147X128mm 9500 mm²
FD-402L4 110 mm 147X128mm 9500 mm²

Product Specifications

Item Material Option
Body & Collar Cast Iron —-
Strainer Nickel Bronze (NB) —-
Finish C.I Parts Epoxy Coated Powder Coating
Finish Strainer Satin Finish Polished
DOCUMENT
  • FD_402
