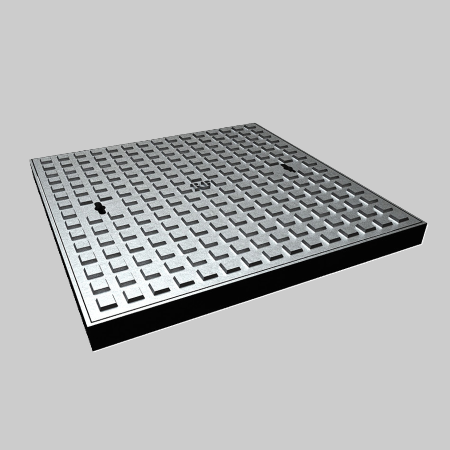

MC – 690 x 690 C1 (HD)
MC – 690 x 690 C1 (HD)

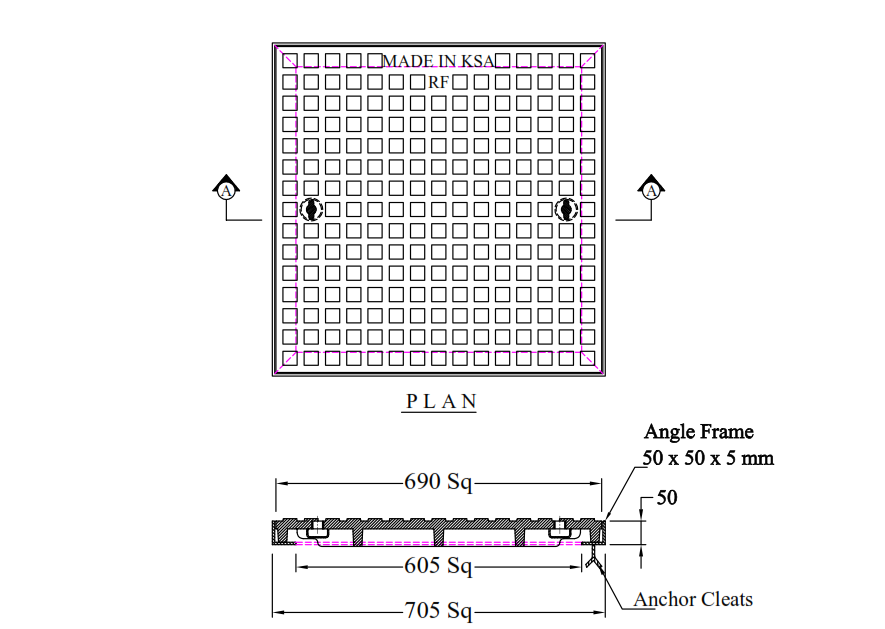

Normal Dimensions
Product Name Covers with Mild Steel Angle Frame
Product Number MC 690 x 690 C1 (HD)
Material GREY CAST IRON – ACCORDING TO: ASTM A – 48
MS ANGLE FRAME – ACCORDING TO : IS 2062
Features Closed Key Holes
Clear Opening 605 x 605 mm
Over Base 705 x 705 mm
Depth 50 mm
Design Load 40 TON (Heavy Duty)
Design Specification BSEN-124 (D-400)
Inscription “AS PER CONTRACTOR REQUIREMENT”
DOCUMENT
  • MC-690-x-690-C1-HD-COVERS-WITH-MILD-STEEL-ANGLE-FRAME-
  • MC-690-x-690-C1-HD-DATA-SHEET
